Sugar Packing Machine

Name: Sugar Packing Machine
Brand: UNION
Price: 1000 USD

Place of Origin : CHIAN

Brand Name : UNION

Certification : CE

Model Number : DCS-Y9、DCS-YA36、DCS-YA132

MOQ : 1set

Price : us$1000--$10000/set

Packaging Details : Standard Export Packing

Delivery Time : 20-30working days

Payment Terms : T/T

Supply Ability : 50sets/month

Contact Now

Introduction: Powder quantitative packing machine adopts screw-feeding type,it is mainly composed of host machine, weighing device, PLC and hoist, etc. The whole machine can be made of carbon steel, stainless steel or half stainless steel (only material contact part use stainless steel). Packing machine spiral is designed by removable assembly; it is convenient for cleaning up the equipment after work.

Application: This machine is suitable for packing fluidity Powdery product likewhite sugar.

Model: DCS-Y9
Weighing Range: 5g-5000g
Packing Speed: 1500-2000 bags/hour
Precision: ±1%FS
Power: 900W
Electrical Power: AC380/220,50/60(V/Hz), 3/1 phase, made as per requirement
Weight: 280kg
Dimension: 1000×850×1850mm
Packaging container: Aluminum foil bag, plastic bag, bag, paper bag, bottle, etc
Air Source Pressure: 0.4-0.6Mpa

Model: DCS-YA36
Weighing Range: 5kg-50kg
Packing Speed: 120-240 bags/hour
Precision: ±0.2%FS
Power:3KW
Electrical Power: AC380/220,50/60(V/Hz), 3/1 phase, made as per requirement
Air Source Pressure: 0.4-0.6Mpa
Weight: 600kg
Dimension: 2200*800*2600mm
Length of belt conveyor: 2200mm
Width of belt conveyor: 300mm

Model: DCS-YA132
Weighing Range:20-80kg
Packing Speed: 120-240 bags/hour
Precision: ±0.2%FS
Power:4KW
Electrical Power: AC380/220,50/60(V/Hz), 3/1 phase, made as per requirement
Air Source Pressure: 0.4-0.6Mpa
Weight: 800kg
Dimension: 3000*1000*2800mm
Length of belt conveyor: 3000mm
Width of belt conveyor: 400mm

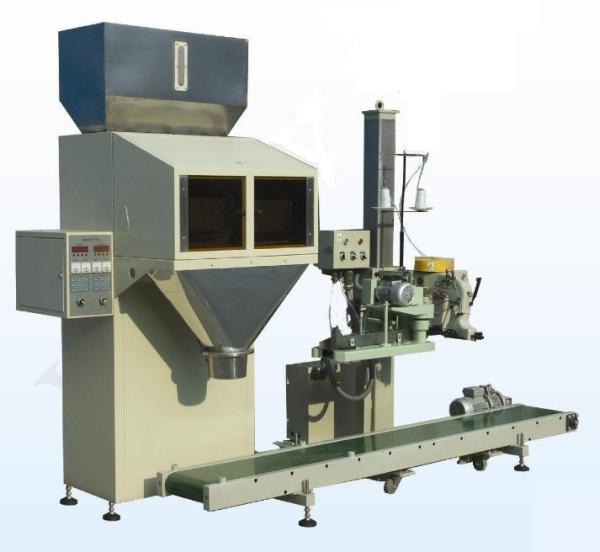

Sugar Packing Machine Images
