Place of Origin : CHIAN
Brand Name : UNION
Certification : CE
Model Number : YY-P250、YY-P320、YY-P350、YY-P400、YY-P450、YY-P600
MOQ : 1set
Price : us$4000--$10000/set
Packaging Details : Standard Export Packing
Delivery Time : 20-30working days
Payment Terms : T/T
Supply Ability : 50sets/month
Introduction:
|
Application:
Package Styles:
|
Type | YY-P250 | YY-P320 | YY-P350 | YY-P400 | YY-P450 | YY-P600 |
Film width | 250MM | 320MM | 350MM | 400MM | 450MM | 600MM |
Bag Length | 40-280MM | 90-330MM | 65-280MM | 180-400MM | 130-450MM | 130-450MM |
Bag width | 30-110mm | 50-150MM | 50-160mm | 50-185mm | 60-200mm | 60-280mm |
products High | max.60mm | Max.60mm | max.70mm | max.80mm | max 90mm | max95mm |
Packing speed | 40-330bag/min | 40-230bag/min | 40-230bag/min | 30-180bag/min | 30-180bag/min | 30-150bag/Min |
Power | 220V 50/60HZ 2.4KW | 220V 50/60HZ 2.6KW | 220V 50/60HZ 2.6KW | 220v 50/60hz 2.6KW | 220v 50/60hz 2.6KW | 220v 50/60hz 2.6w |
Machine size | 3770x670x1450 | 3770x720x1450 | 4020x770x1450 | 4020x800x1450 | 4020x820x1450mm | 4020x90x1450mm |
Machine Weight | 550kg | 600kg | 650kg | 700kg | 800kg |
900kg |
upon the type and nature of the products to be wrapped as well as the type and quality of the wrapping materials and the feeding system.
Optional accessories :
1: Date Coder
2: Touchable Screen
3: Automatic Punching Device
4: Alternative sealing patterns and notch
5: Auto labeling device
6: Deoxidizer chute device
7: Gas flushing device
8: Alcohol spraying device
9: Auto feeder
![]() |

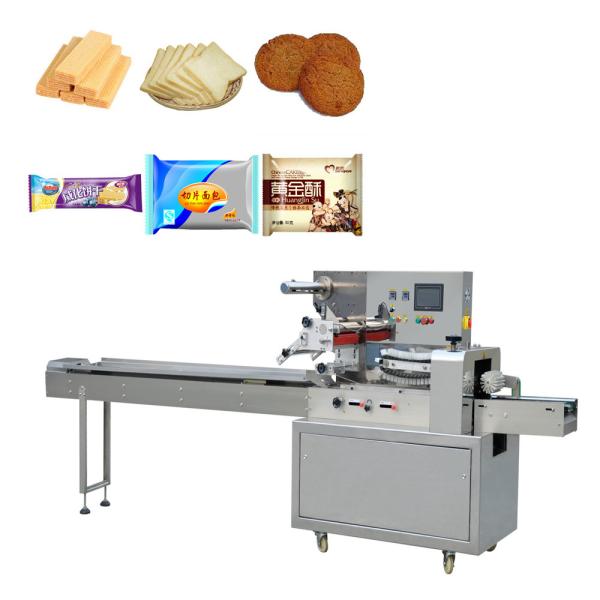

horizontal pillow packing machine Images |
